| Fine iron powder from raw material! ■Purpose: Model CG is designed to remove fine iron powders from dry powdered materi-als to get the best results in food, chemical, plastic,ceramic, medical industries and many other. ■Features：1. Electro-magnetized screens capture fine iron particles in the micron range 2. Vibration motors ensure effective and smooth flow of material through the screens. 3. Rate of feed material is controlled. ■Parameter：1. Screen pitch can be selected for the best results. 2. Eight types of screens are available to achieve the best results. CG is designed to get superior results from dry material. It is difficult to separate iron fines with a grain size less than 0.1mm due to particle attraction and adhesion to the separator.CG directs the magnetic flux to the center of the unit and enhances higher flux density without magnetic leakage. Vibration to filters ensures effective removalof iron during the cleaning process therefore improving screen flow rate. |  |

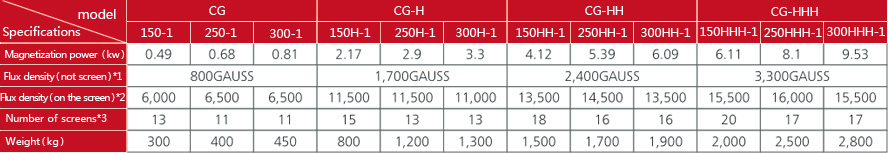

The magnetic flux density in the above table is the measured value or analytical value measured when the coil is at room temperature.
■ 1.Magnetic flux density with no elements.（Maximum value）
■ 2.Maximum magnetic flux density when using standard screen.（Analysis value）There is a weakness depending on the place to measure.
■ 3.Maximum number when setting standard screen.
